Vertical Projected Field – 5205

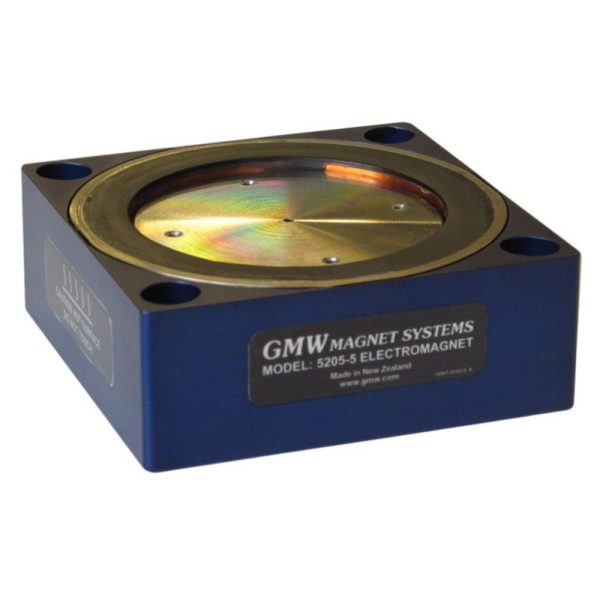

The 5205 Electromagnet is a low profile projected vertical field magnet providing uniform Bz field at a location above the magnet surface. It is intended for applications where the space around the working volume needs to be freely accessible.

The 5205 can be mounted in any orientation and the light weight (1.3kg) allows the magnet to be integrated into dynamic applications such as wafer testing.

The 5205 is designed to operate up to 100°C in order to determine the performance of the device under test in both magnetic field and at temperature.
